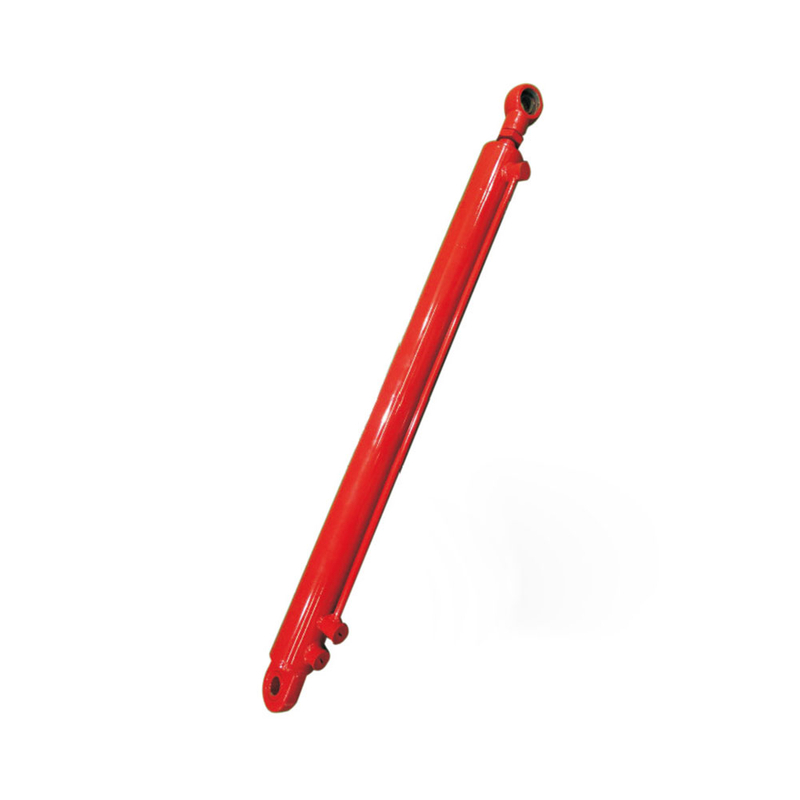

HSG Hydraulic Cylinder for Straw Bin of Peanut Harvester Double-acting Hydraulic Cylinder&Eye

Product Overview

Grain tank cylinders typically feature high thrust and precise displacement control. The high-thrust design easily handles the weight of grain tanks filled with peanut pods, ensuring it can powerfully drive the tank to complete horizontal extension and tilting movements during the peanut unloading process. Whether dealing with lightweight freshly harvested peanuts or sun-dried peanuts with increased weight, the cylinder maintains stable force delivery without insufficient power or jamming.

Meanwhile, the precise displacement control allows the grain tank to accurately reach the designated position during horizontal movement, laying the groundwork for subsequent tilting and unloading. During the tilting process, it can also control the tilting angle according to actual needs, enabling fast and thorough peanut unloading. This prevents peanut residue, effectively improves unloading efficiency, and reduces the secondary processing costs caused by incomplete unloading.

Model Details & Interpretation

Product Specification Details

• Key Dimensions (Precision Engineered)

1. Cylinder Bore: 63mm (optimizes hydraulic oil flow for stable lifting force)

2. Piston Rod Diameter: 35mm (reduces weight while maintaining load-bearing capacity)

3. Stroke: 730mm (meets the standard lifting range of most rice harvester headers)

4. Mounting Distance: 1035mm (standard; customizable to fit specific machine layouts)

• Core Performance Parameters

1. Working Pressure: 16MPa (delivers sufficient power for heavy header lifting without overloading the hydraulic system)

2. Oil Temperature Range: -30℃ to +90℃ (adapts to extreme seasonal and regional climates—from cold temperate zones to hot tropical areas)

3. Service Life: 15,000 to 50,000 full-stroke cycles (varies by usage conditions: regular maintenance and mild working environments extend lifespan to the upper end of the range)

Product Advantages

1. High Precision and Stability: Strictly controlling the manufacturing process, the precise cylinder diameter size and appropriate stroke can ensure stable and accurate variable speed operation during work, reduce power transmission loss, and ensure the smooth operation of the wheat harvester.

2. Strong Durability: Using high-quality materials and reliable manufacturing processes, it has good wear resistance and compression resistance, and can adapt to long-term and high-intensity wheat harvesting operations, reduce the probability of failures, and extend the service life.

3. Good Sealing Performance: The advanced sealing design effectively prevents hydraulic oil leakage, not only ensuring the working efficiency of the oil cylinder, but also reducing maintenance costs and frequency.

Application Range

1. This product is specially designed for the fruit bin system of peanut harvesters

2. Agricultural machinery manufacturers (OEM production support)

3. Farm equipment maintenance and repair service providers

How to Use & Maintain

• Installation Guidelines

It is recommended to refer to the harvester equipment manual during installation or contact our technical team for customized installation guidance.

• Operation & Maintenance Tips

1. Pre-Operation Check: Before each use, inspect for oil leaks, loose connections, and abnormal noises. Test the lifting action to ensure smooth movement.

2. Oil Management: Use hydraulic oil that meets the harvester' s specifications. Replace oil regularly (every 500-800 working hours) and keep the oil clean to avoid clogging internal components.

3. Post-Season Care: After the harvesting season, clean the cylinder surface to remove crop residues and moisture. Apply anti-rust oil to exposed parts (e.g., piston rod) and store in a dry, ventilated area.

• Additional Information

1. OEM/ODM Services: We provide OEM production for agricultural machinery brands, with support for custom logos, packaging, and technical documentation.

2. Quality Certification: All cylinders undergo strict pressure testing, leak testing, and performance inspections before shipment to meet international quality standards.

3. After-Sales Support: For compatibility questions, installation guidance, or replacement parts, contact our technical team via email or phone (details available on the contact page).
