Model Details & Interpretation
| Material | Q235, 45#steel, Customize | Work Temperature | -30℃-90℃ |
| Application | Agriculture | Specification | as per requirement |
| Working Pressure | Maximum 16MPA | Color | Customize |
| After Warranty Service | Online Support | Transport Package | Wooden Package |
| Warranty | 1Year | Certificate | ISO9001 |
| Surface Treatment of Piston Rod | Ordinary Chromium Plating, Q&T, Customize | Production Time | Based on Order Quantity |
| Seal Type | Sealing Dust Wiper, Y-Ring Seal, Glyd Ring, Back-Up Ring, Customize | Service | OEM & ODM |

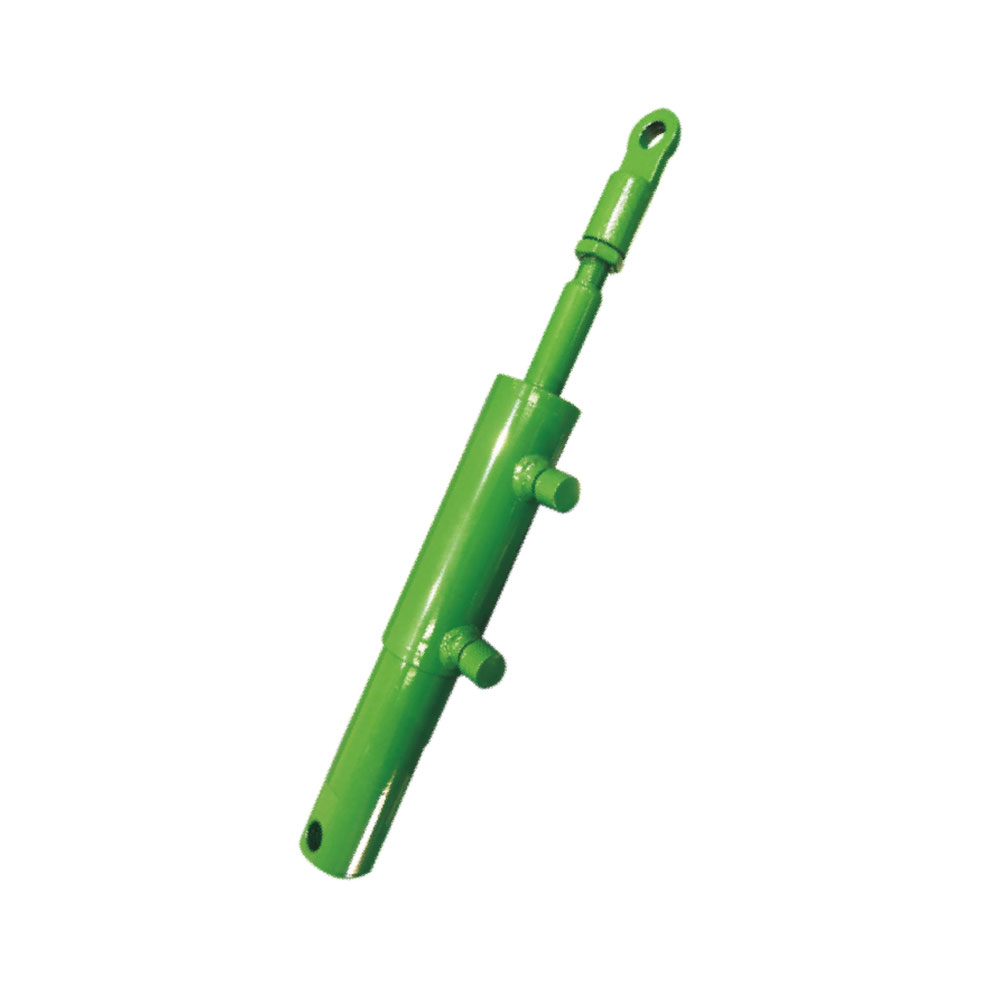

Product Specification Details
• Key Dimensions (Precision Engineered)
1. Cylinder Bore: 40mm (optimizes hydraulic oil flow for stable lifting force)
2. Piston Rod Diameter: 22mm (reduces weight while maintaining load-bearing capacity)
3. Stroke: 67mm (meets the standard lifting range of most rice harvester headers)
4. Mounting Distance: 418mm (standard; customizable to fit specific machine layouts)
• Core Performance Parameters
1. Working Pressure: 16MPa (delivers sufficient power for heavy header lifting without overloading the hydraulic system)
2. Oil Temperature Range: -30℃ to +90℃ (adapts to extreme seasonal and regional climates—from cold temperate zones to hot tropical areas)
3. Service Life: 15,000 to 50,000 full-stroke cycles (varies by usage conditions: regular maintenance and mild working environments extend lifespan to the upper end of the range)
Product Advantages
1. High Precision and Stability: Strictly controlling the manufacturing process, the precise cylinder diameter size and appropriate stroke can ensure stable and accurate variable speed operation during work, reduce power transmission loss, and ensure the smooth operation of the wheat harvester.
2. Strong Durability: Using high-quality materials and reliable manufacturing processes, it has good wear resistance and compression resistance, and can adapt to long-term and high-intensity wheat harvesting operations, reduce the probability of failures, and extend the service life.
3. Good Sealing Performance: The advanced sealing design effectively prevents hydraulic oil leakage, not only ensuring the working efficiency of the oil cylinder, but also reducing maintenance costs and frequency.
Application Range
1. Designed for the stepless transmission system of all kinds of wheat harvesters
2. Agricultural machinery manufacturers (OEM production support)
3. Farm equipment maintenance and repair service providers
How to Use & Maintain
• Installation Guidelines
According to the installation requirements of the wheat harvester, install the oil cylinder correctly in the designated position, ensure that the installation distance meets the standard, connect the hydraulic pipeline, and conduct a tightness test.
• Operation & Maintenance Tips
1. Pre-Operation Check: Before each use, inspect for oil leaks, loose connections, and abnormal noises. Test the lifting action to ensure smooth movement.
2. Oil Management: Use hydraulic oil that meets the harvester’s specifications. Replace oil regularly (every 500-800 working hours) and keep the oil clean to avoid clogging internal components.
3. Post-Season Care: After the harvesting season, clean the cylinder surface to remove crop residues and moisture. Apply anti-rust oil to exposed parts (e.g., piston rod) and store in a dry, ventilated area.
• Additional Information
1. OEM/ODM Services: We provide OEM production for agricultural machinery brands, with support for custom logos, packaging, and technical documentation.
2. Quality Certification: All cylinders undergo strict pressure testing, leak testing, and performance inspections before shipment to meet international quality standards.
3. After-Sales Support: For compatibility questions, installation guidance, or replacement parts, contact our technical team via email or phone (details available on the contact page).
