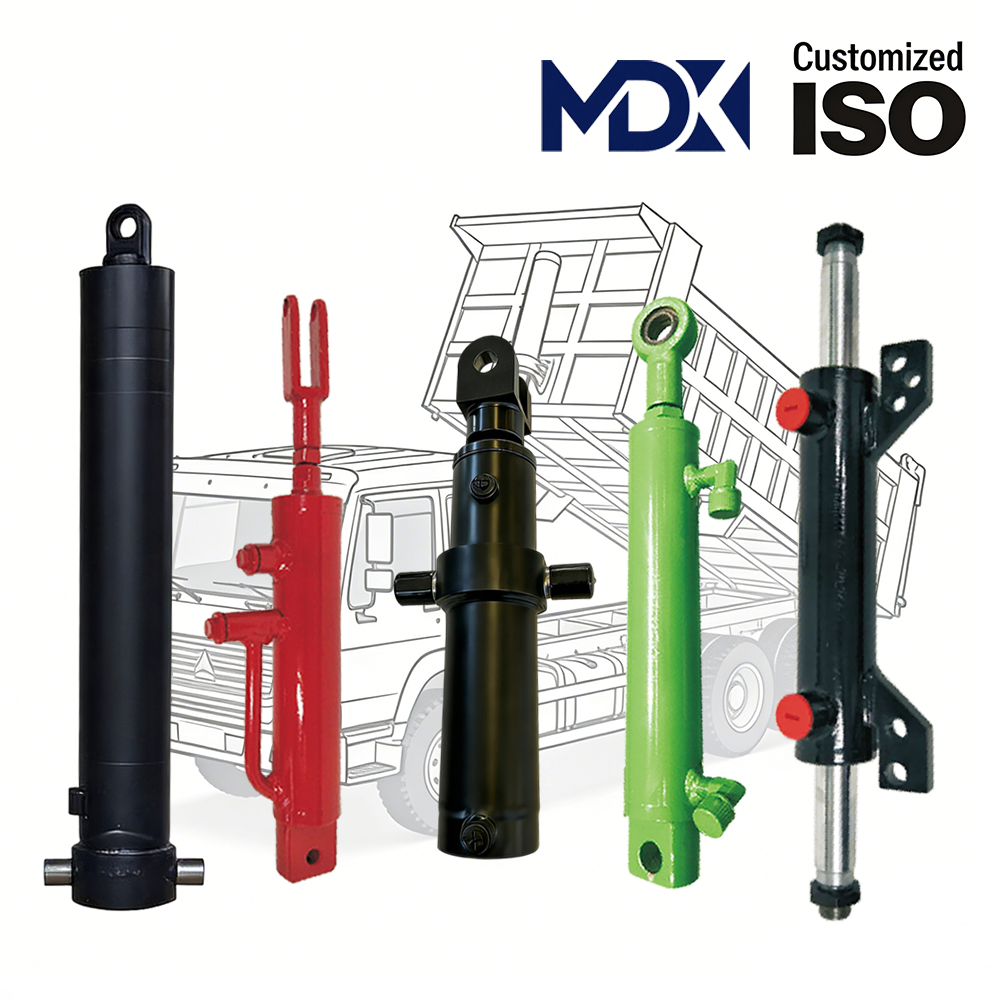

Hydraulic cylinders are the core actuators in hydraulic systems, converting hydraulic energy into linear mechanical energy. Depending on their construction, movement type, and operating pressure, hydraulic cylinders can be classified into several types.
Principle:Hydraulic fluid is supplied to only one side of the cylinder, generating movement in one direction. The return stroke is achieved by gravity, a spring, or an external force.
Applications:Commonly used in dump truck lifting mechanisms, hydraulic jacks, etc.
Principle:Hydraulic fluid can be supplied to both sides of the cylinder. The reciprocating movement in both directions is hydraulically driven.
Applications:This is the most common type, widely used in excavators, machine tools, and construction machinery.
Characteristics:Single-rod piston cylinders have a rod on only one end, resulting in unequal chamber areas, meaning the speed and thrust differ between strokes. Through-rod (double-rod) cylinders have rods extending from both ends, offering symmetrical speed and force.
Characteristics:The piston does not contact the inner wall of the barrel; instead, the plunger interacts with the guide sleeve. It can only function as a single-acting cylinder, with the return stroke relying on external force. Since the barrel's inner wall does not require precision machining, it is highly economical for long-stroke and heavy-duty applications.
Characteristics:Composed of two or more stages of piston cylinders nested inside each other. It features a compact retracted length but a very long extended stroke.
Applications:Mostly used in dump trucks and crane booms.
Characteristics:Instead of linear movement, it outputs torque and achieves reciprocating rotation, typically with a swing angle of less than 360°.
Characteristics:Uses four or more high-strength tie rods to secure the front and rear caps to the cylinder barrel. They are compact, easy to disassemble and maintain, and typically used in low-to-medium pressure environments.
Industry Habit:Highly standardized in North American industrial and factory automation equipment (e.g., NFPA standards).
Characteristics:The barrel is welded directly to the base and heavy-duty end caps. They are more robust, have no tie rods, feature a smaller outer diameter, and can withstand higher operating pressures (e.g., 3000 psi / 210 bar and above).
Applications:Heavy construction machinery, agricultural equipment, mining machinery, etc.
When selecting a hydraulic cylinder, engineers must carefully consider the operating pressure, mounting space, stroke and speed requirements, and budget. For instance, mobile construction machinery favors high-strength welded double-acting cylinders, while factory automation assembly lines typically utilize standardized tie-rod cylinders.
